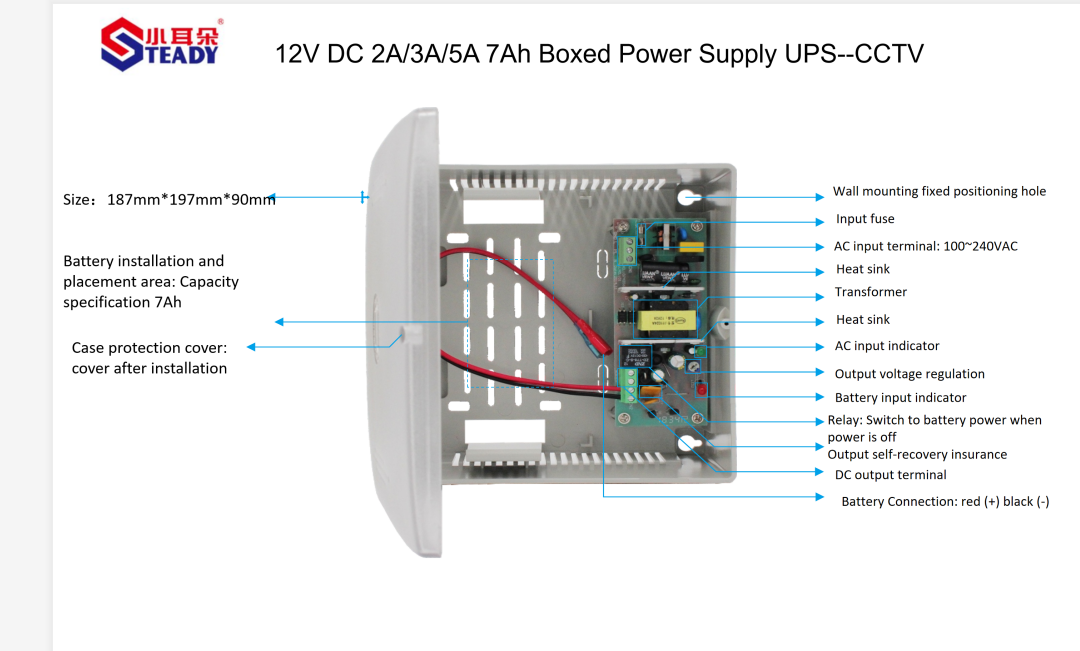

Boxed Power Supply UPS--CCTV
  • Name: 12V DC 2A Plastic Box With Back Up (7AH BAT)
  • Product Code: STD-SMJN02-12-7Z
  • Incoterm: FOB
  • Availability: In Stock
Share to:

Feature:


1.Plastic cabinet with key lock

2.Wide input range: 100-240VAC  50/60Hz.

3.Output Current: 2A MAX,

4.Charging Current:0.6A MAX,No-load loss:0.5W ;

5.Undervoltage protection for Battery:10.5V ;
6.Output is adjustable: 12.5-13.8V DC;
7.Battery size: 12V/2A/3A/5A(Small box)-- 7Ah battery;  12V/3A/5A(Big box)--17Ah battery;
8.Can be installed in the wall;
9.100% Enough Power and 100% 8 hour burn-in test;

10.Other output voltage and current can be customized


PROTECTION:

Short circuit, Over current, Overload, Overvoltage protection;


Advantages:


1. Unique design, ABS fireproof VI grade material

2.Can be installed in the wall;

3. 100% Enough Power and 100% 8 hour burn-in test;
4. Certification: ROHS&FCC&CE;
5. Warranty: 3 years;
6. Other output voltage and current can be customized
