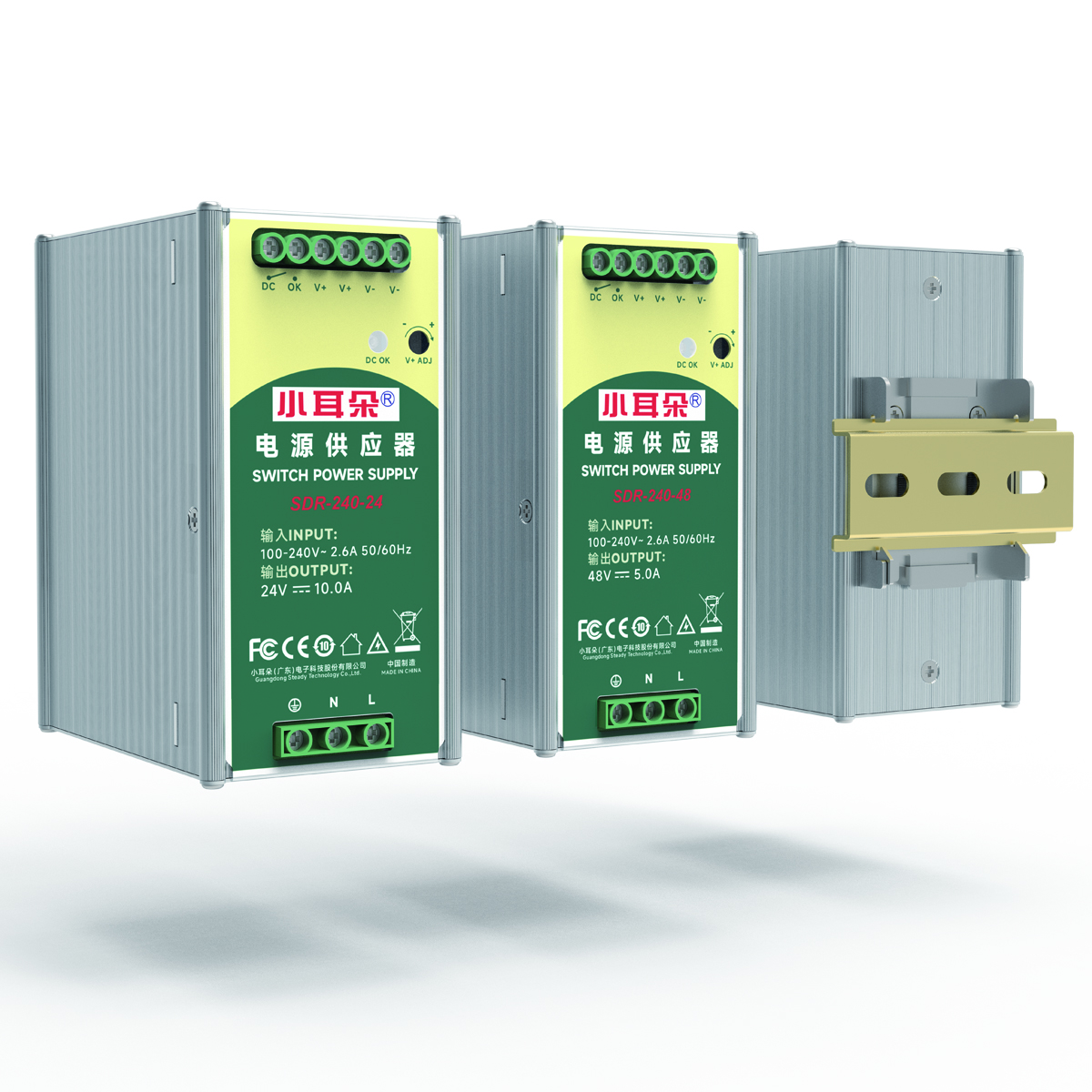

The 240W series of industrial rail power supplies・ This series of power supplies provides three output voltages of 12V/24V/48V and an output power of 240W level. The power supplies of all series of models have passed EMC certification and safety certification, and have an operating temperature range of -20 C-70C. The power supply casing adopts a non -sealed aluminum alloy + iron shell design, which has fast heat dissipation, high conversion efficiency, and supports TS35/7.5 and TS35/15 specification rail installation,
also has over-voltage protection, over-current protection, over-temperature protection, short-circuit protection and status indication functions, and is suitable for most industrial integrated DC power supply environments.
|
Specification |
12 V/240 W |
24 V/240 W |
48V/240W |
|
Input voltage |
100-240 V~ 50/60 Hz |
||
|
Input current |
3.0 A Max |
||
|
Output voltage |
12 V= |
24 V= |
48 V= |
|
Output current |
16.6 A |
10.0 A |
5A |
|
Output power |
200 W |
240 W |
240 W |
|
Voltage adjustment |
12-14V = |
24-28 V= |
48-55 V= |
|
Efficiency |
≥89%
|
≥90%
|
≥90%
|
I.Size: L121.5 mm xW66.1 mm x H129.3mm
2.lnput & Output terminals: Screw lock wire terminals
■ International universal full range 100-240V~ input
■ Overvoltage/overcurrent/short circuiVovertemperature (105°C temperature protection point),
self-recovery mode
■ Natural air cooling
■ Can be installed on TS35/7.5 and TS35/15 din rails
■ BSEN/EN61000-6-2 (BS EN/EN50082-2) Industrial Immunity
■ 100% full load aging test
