Switch Mode Power Supply 24W-400W ( With PFC)

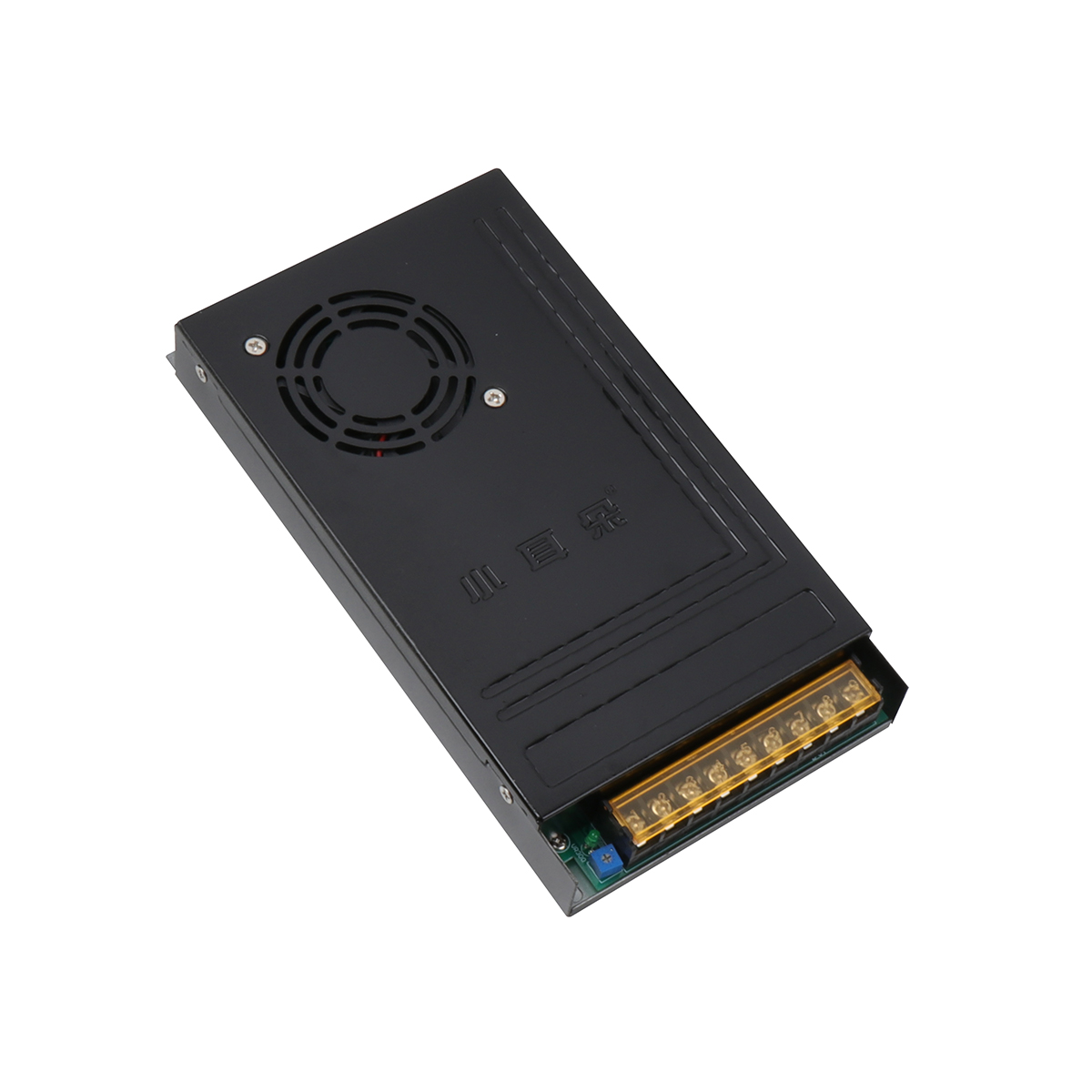

  • Name: 90-264VAC 350W 12V 30A DC Switch mode Power supply
  • Product Code: STD-WZX350-12
  • Incoterm: FOB
  • Availability: In Stock
Share to:
1. 110-240VAC Wide Ultra-thin (29mm Thickness)
2. With stand 3000VAC inrush input 5S;
3. Types of protection: short circuit/over-voltage/overload/over-temperature protection;
4. 100% full load aging test;
5. Built-in PFC(Power factor correction)circuits;
6. LED indicator for power on;
7. Switch operating frequency 100KHZ;
8. All electrolytic capacitors using105 °C long life imported capacitors
9. Ultra-wide working temperature range (-20°C~60°C), 100% load @ 40°C, 50% load @ 80°C;
10. Cooling by fan dissipation;
11. 3-years warranty;
12. DC output Voltage adjustable;
13.Can be installed on DIN RAIL:TS-35/7.5 or TS-35/15;
14.Output voltage can be customized from DC 5-52V.
15. ROHS/EMC/LVD/FCC/CE certified
