Guangdong Steady Technology Co.LTD

Boxed Power Supply UPS--CCTV

Home > Products > Boxed Power Supply > Boxed Power Supply UPS--CCTV

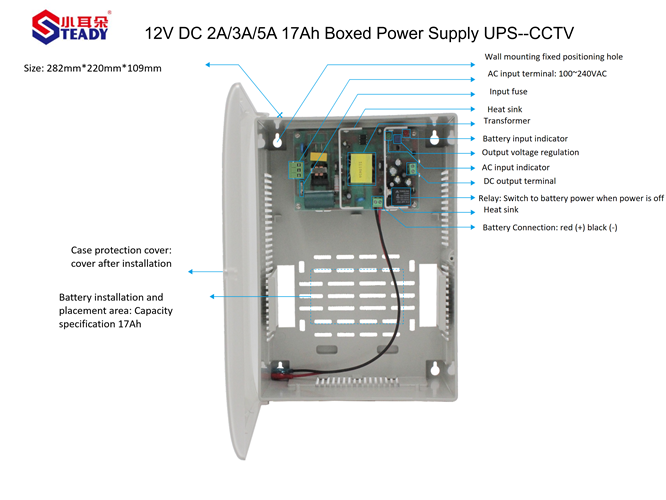

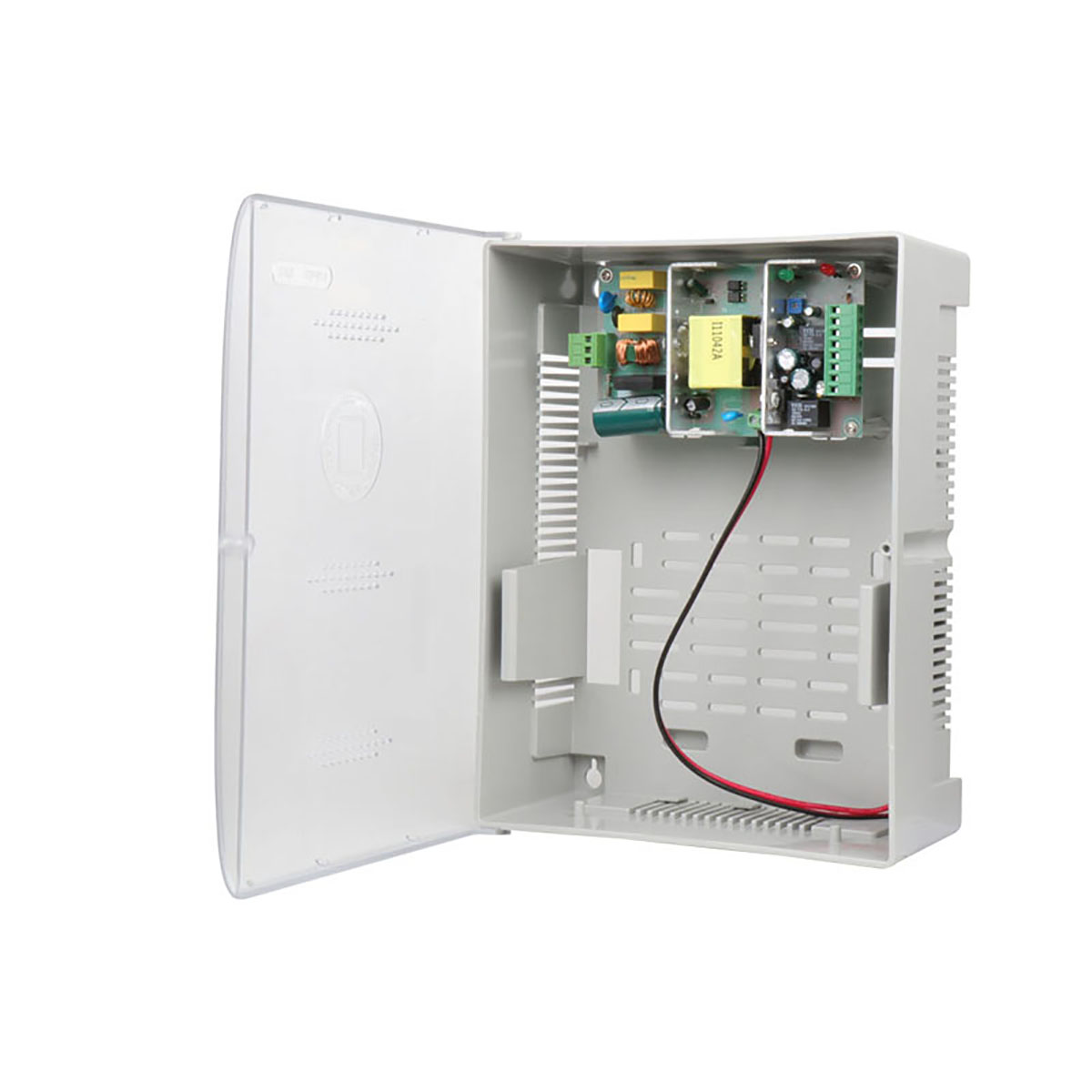

Name: 12V DC 5A Plastic Box With Back Up (17AH BAT)
Product Code: STD-SMJN05-12-17Z
Incoterm: FOB
Availability: In Stock

Inquiry Prev Next

Share to：

Feature：

1. Wide input range: 100-240VAC 50/60Hz.
2. Output Current: 5A MAX，Charging Current:0.6A MAX
3. No-load loss:0.5W ;
4. Undervoltage protection for Battery：10.5V ;
5. Output is adjustable: 12.5-13.8V DC;
6. Battery size: 12V/2A/3A/5A(Small box)-- 7Ah battery; 12V/3A/5A(Big box)--17Ah battery;
7. Can be installed in the wall;
8. 100% Enough Power and 100% 8 hour burn-in test;

9. Other output voltage and current can be customized；

10. 3 Years Warranty；

PROTECTION:

Short circuit, Over current, Overload, Overvoltage protection;

Advantages:

1. Unique design, ABS fireproof VI grade material

2.Can be installed in the wall;

3. 100% Enough Power and 100% 8 hour burn-in test;
4. Certification: ROHS&FCC&CE;
5. Warranty: 3 years;
6. Other output voltage and current can be customized
