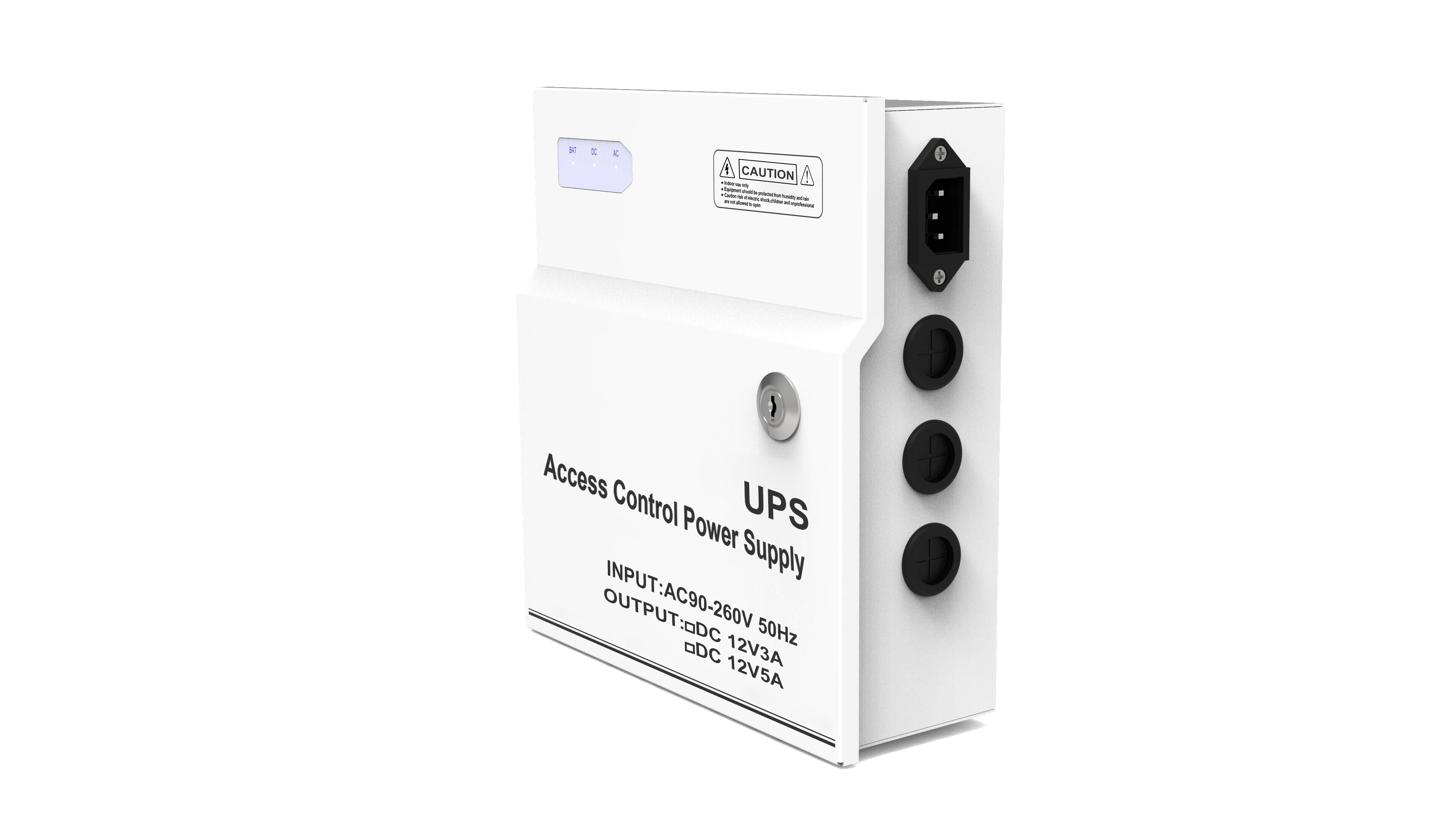

Access Control Power Supply
  • Name: 12V DC 5A Metal Box Access Control Power supply with Backup (4.5 AH/7AH BAT)
  • Product Code: STD-TMJY05-12-7ZN
  • Incoterm:
  • Availability: In Stock
Share to:

Feature:


1. Wide input range: 100-240VAC  50/60Hz.;
2. Charging voltage:13.6-13.8V ;

3. Output voltage:12.0-13.8V ;

4. Output current:  5A ;

5. Uninterruptedly Power range:40nS, Adjustable time:0-45s

6. With UPS terminal which can connect with battery,Undervoltage protection for Battery:10.5V ;

7. Battery size: 4.5Ah/7Ah battery;

8. 100% Enough Power and 100% 8 hour burn-in test;

9. Other output voltage and current can be customized


Protection:

 Short circuit, Over current, Overload, Overvoltage protection,Auto protective function;
