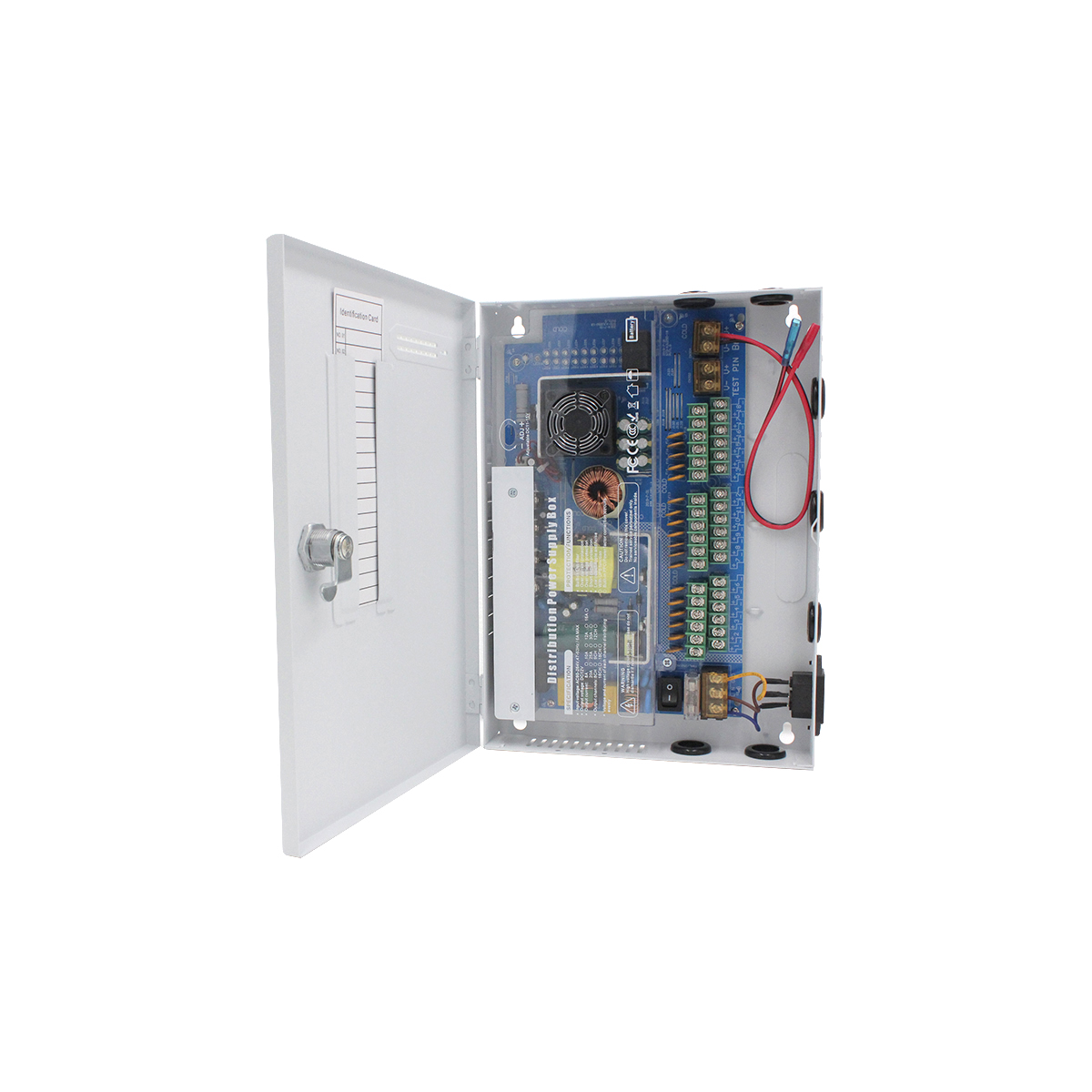

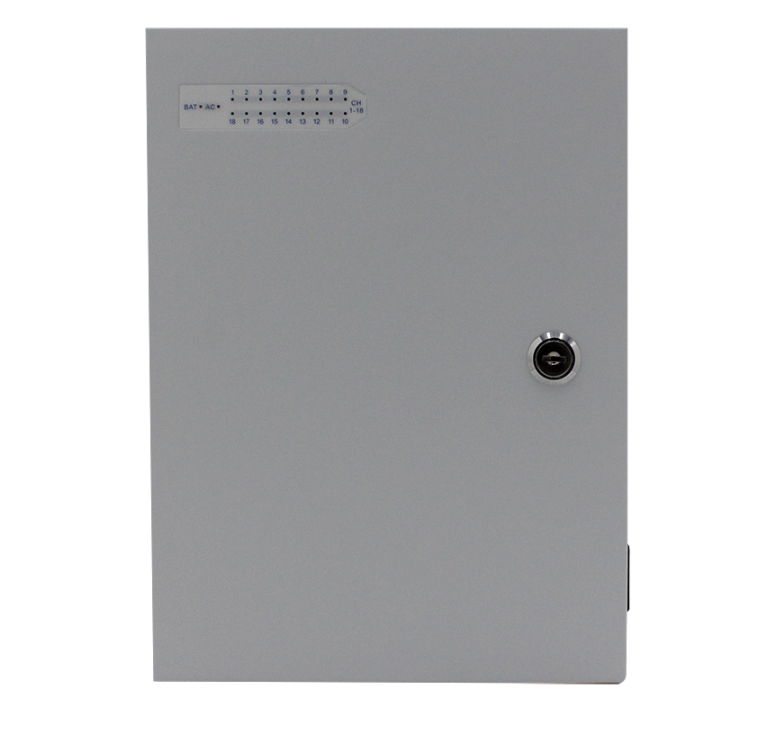

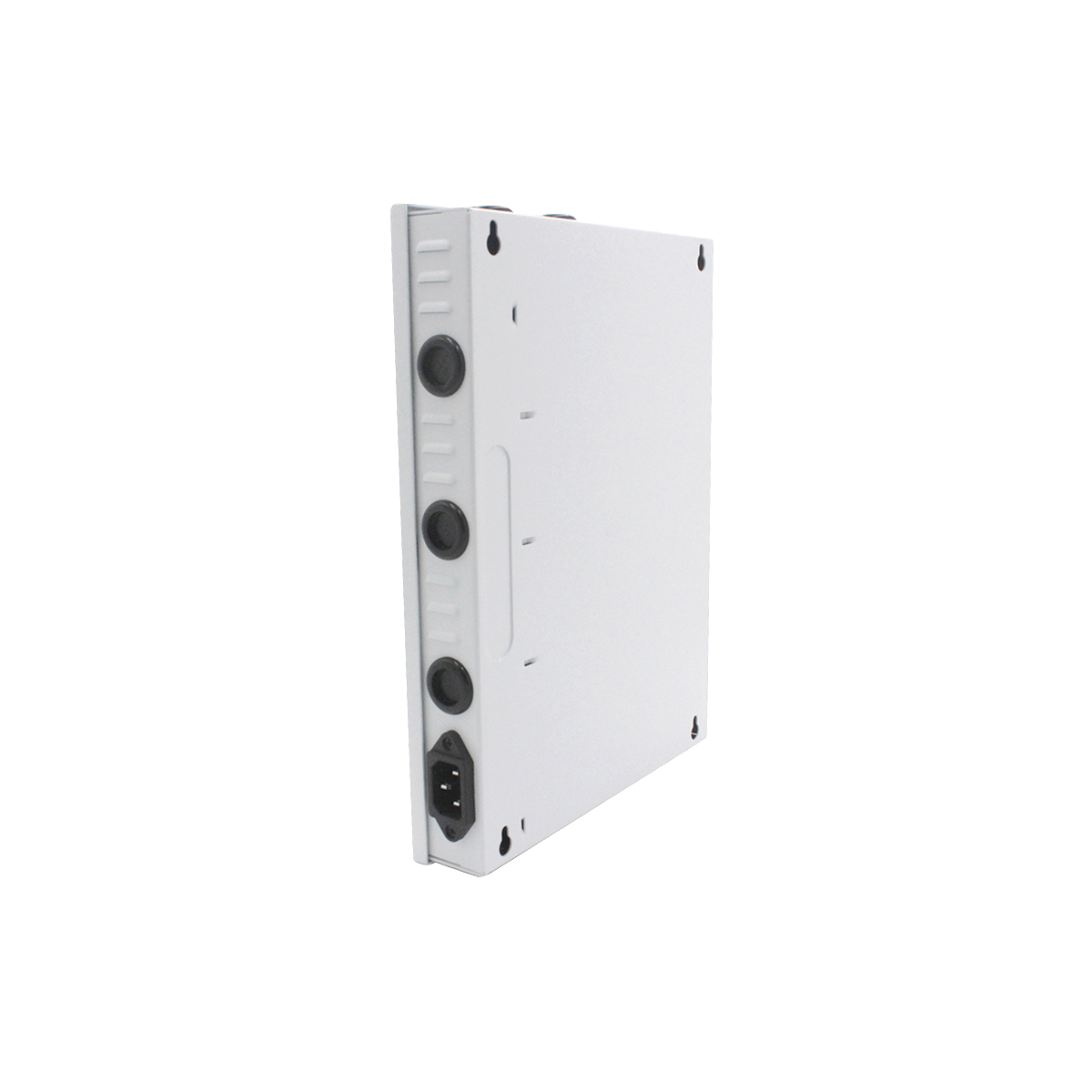

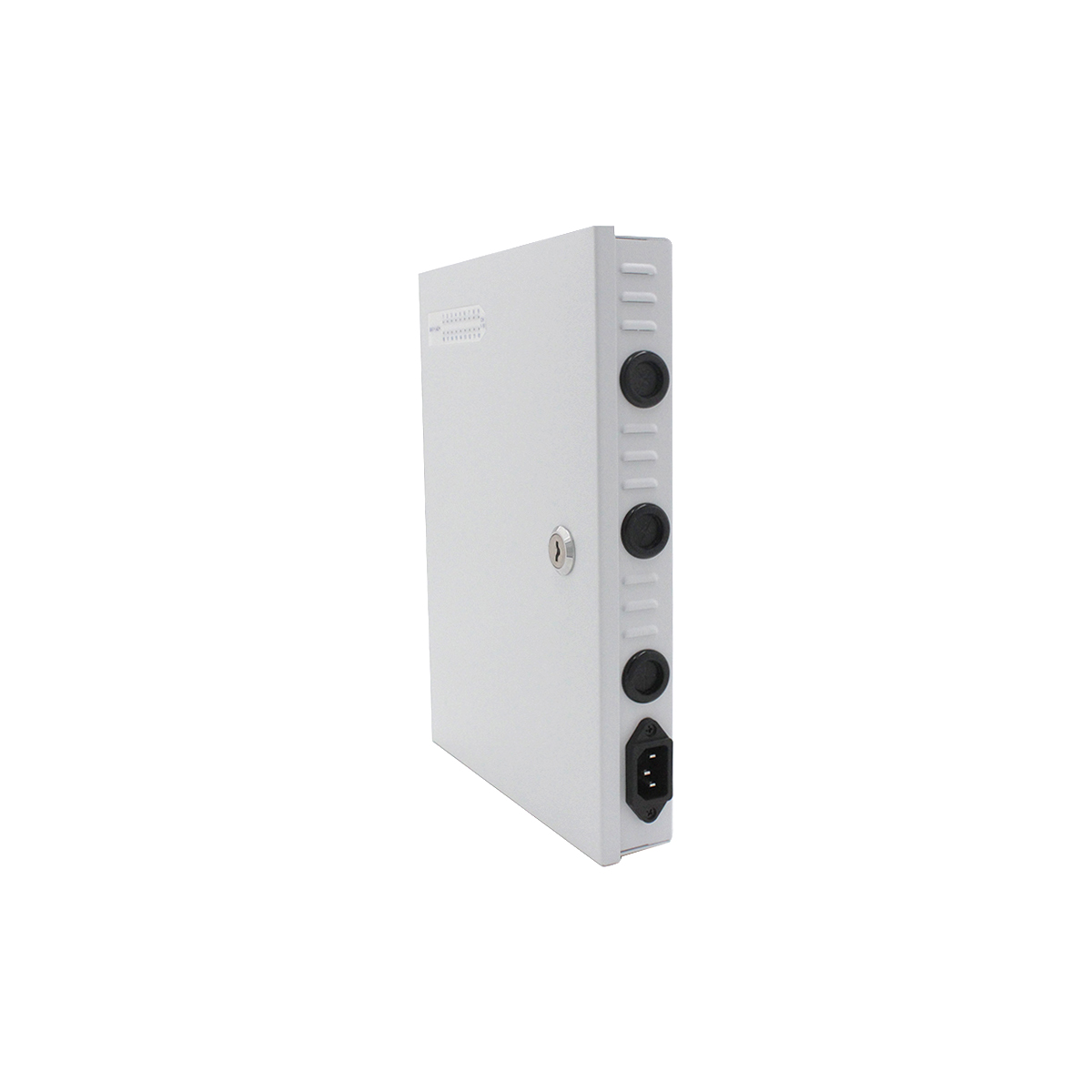

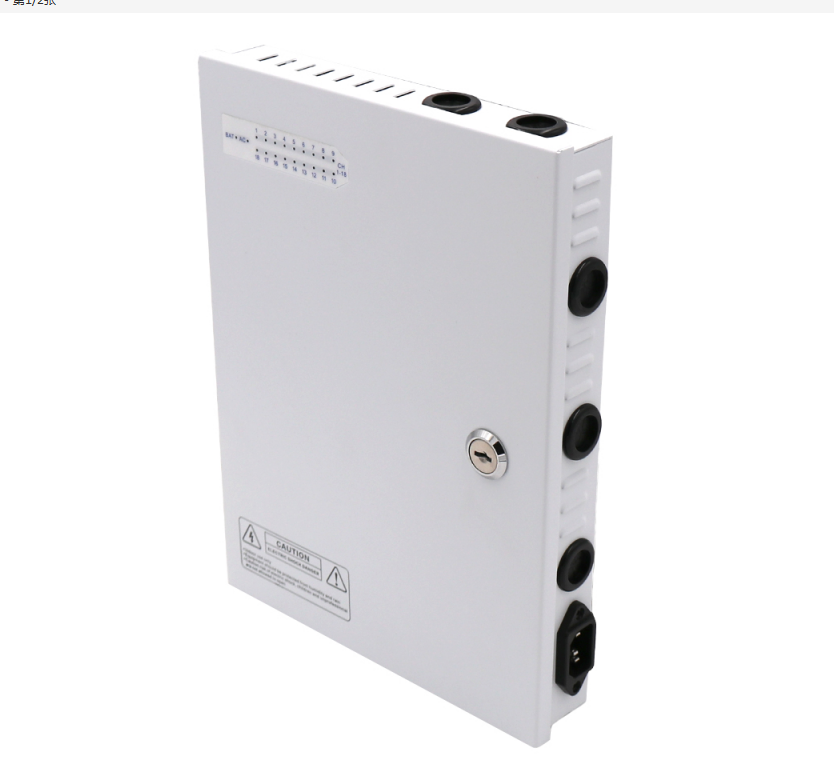

Muti-Way Boxed Power Supply CCTV(Without PFC)
  • Name: 18 Channel, 250W, 12V DC 20A Output Boxed Power Supply CCTV
  • Product Code: STD-XJU250-12-18
  • Incoterm: FOB
  • Availability: In Stock
Share to:

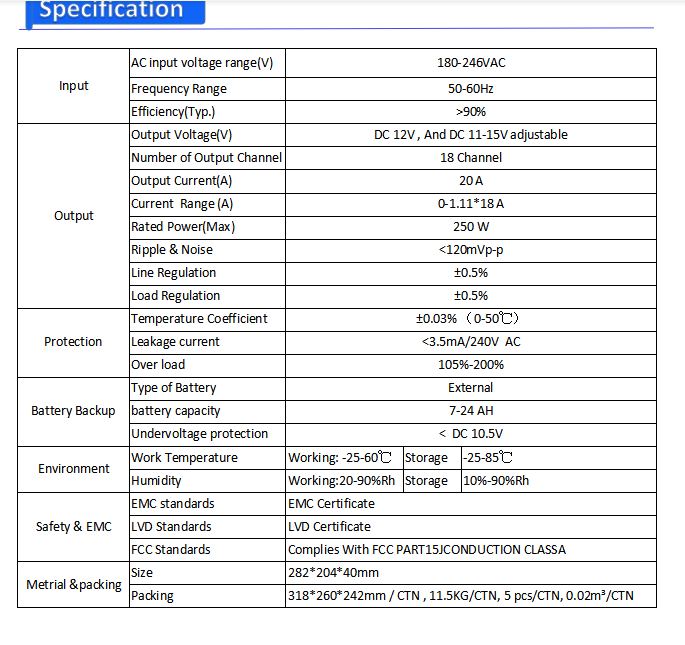

Features

1. AC input: 180-246V AC,47-63Hz;
2. Output voltage:DC12V;
3. Output current:5A/10A/16A/20A/30A;
4. Output Channels:4CH/9CH/18CH;
5. Voltage and current of each channel distributing evenly;
6. Output Voltage adjustable: DC 11-15V.

PROTECTION FUNCTIONS

1. Individual PTC fuse for each output channel.
2. Built-in EMI filter,100% full load burn-in test.
3. Short circuits protection
4. Over current protection
5. Over voltage protection
6. Low output ripple and noise

Certification and Warranty
1.. CE& FCC & EMC & LVD & ROHS
2. Warranty:3 years

Why you should choose us ?

Below 9 reasons ensure that we can provide you better service and high quality products than other suppliers.

1. Security industry leader Hikvision and Dahua's power supplier.

2. TOP 1 in China's security power supply manufacturer.

3. STEADY owns International first-class advanced production equipment.5 automatic plug-in assembly machines-----AI machines, 4 Japan imported SMT production lines. 15 management assembly line. Monthly capacity: 500000 PCS.

4.  Strict quality management system.  30 automatic aging machines(High and low voltage, overload, pulse current impact test). & 5 times strict test for each product.& 100% Fully 8 H aging test.

5. 30 engineers of R&D Department. Over 10 engineers with more than 10 yearsof industry experience. 2-3 series of new products launched every month.

6. Self-produced main spare parts,including metal case,transformer, common-mode inductors ,filter and so on.

7. 20 yearss export experience, and many big customers are over the world, and welcome to become our agent.

8.Excellent after sales service.3 years warranty and free of charge for replacement within warranty.

9. Received large customer audits, large project cooperation, and product technology seminars.
