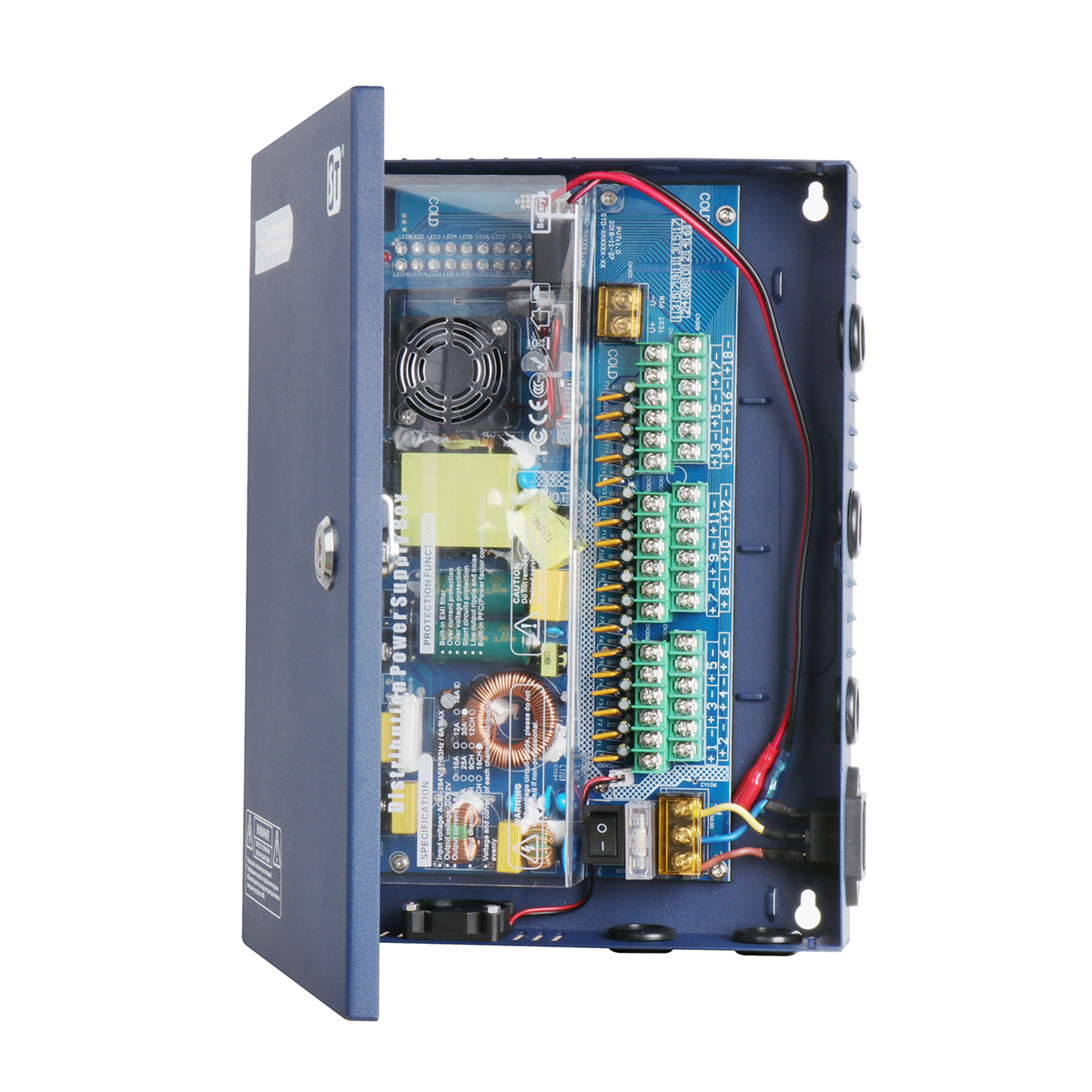

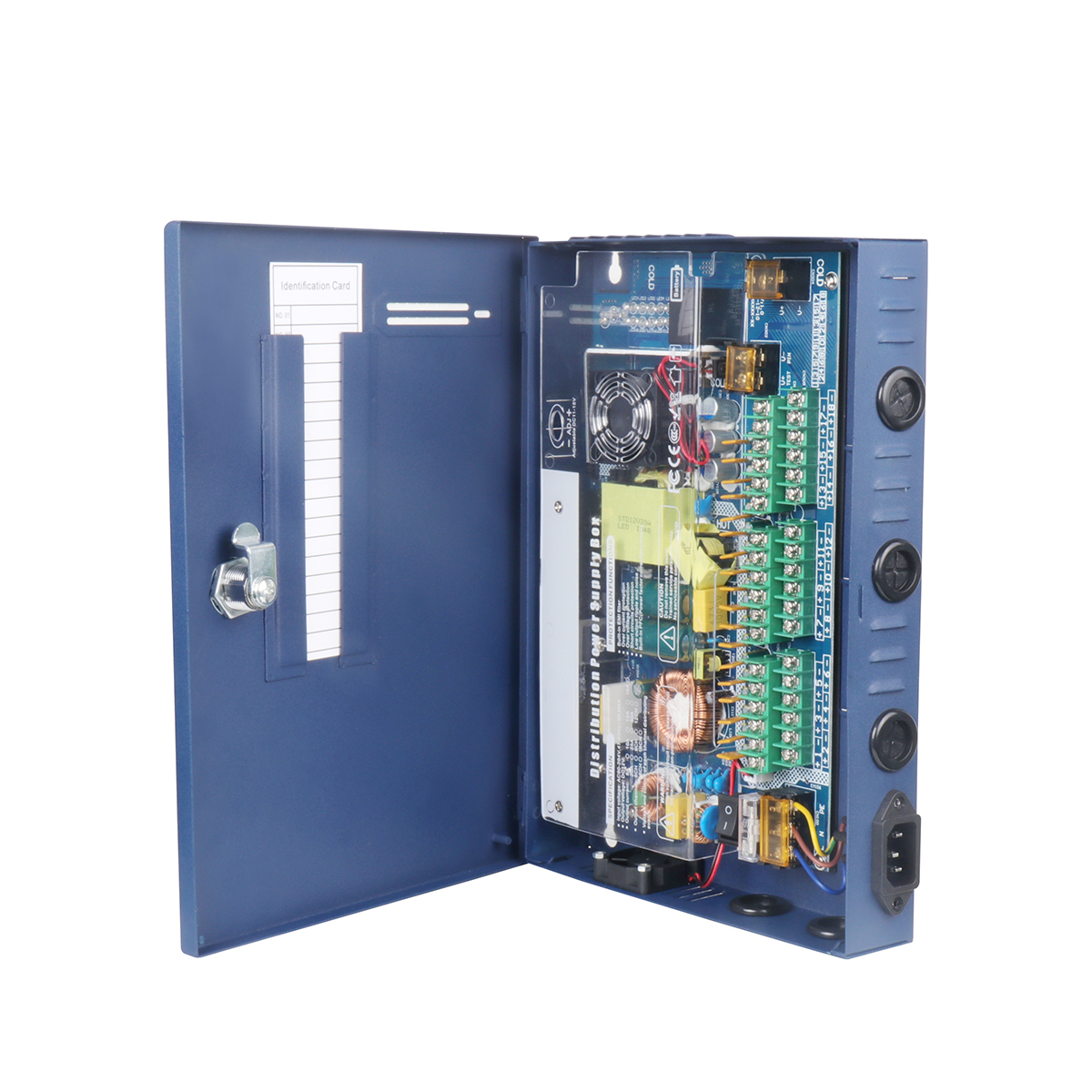

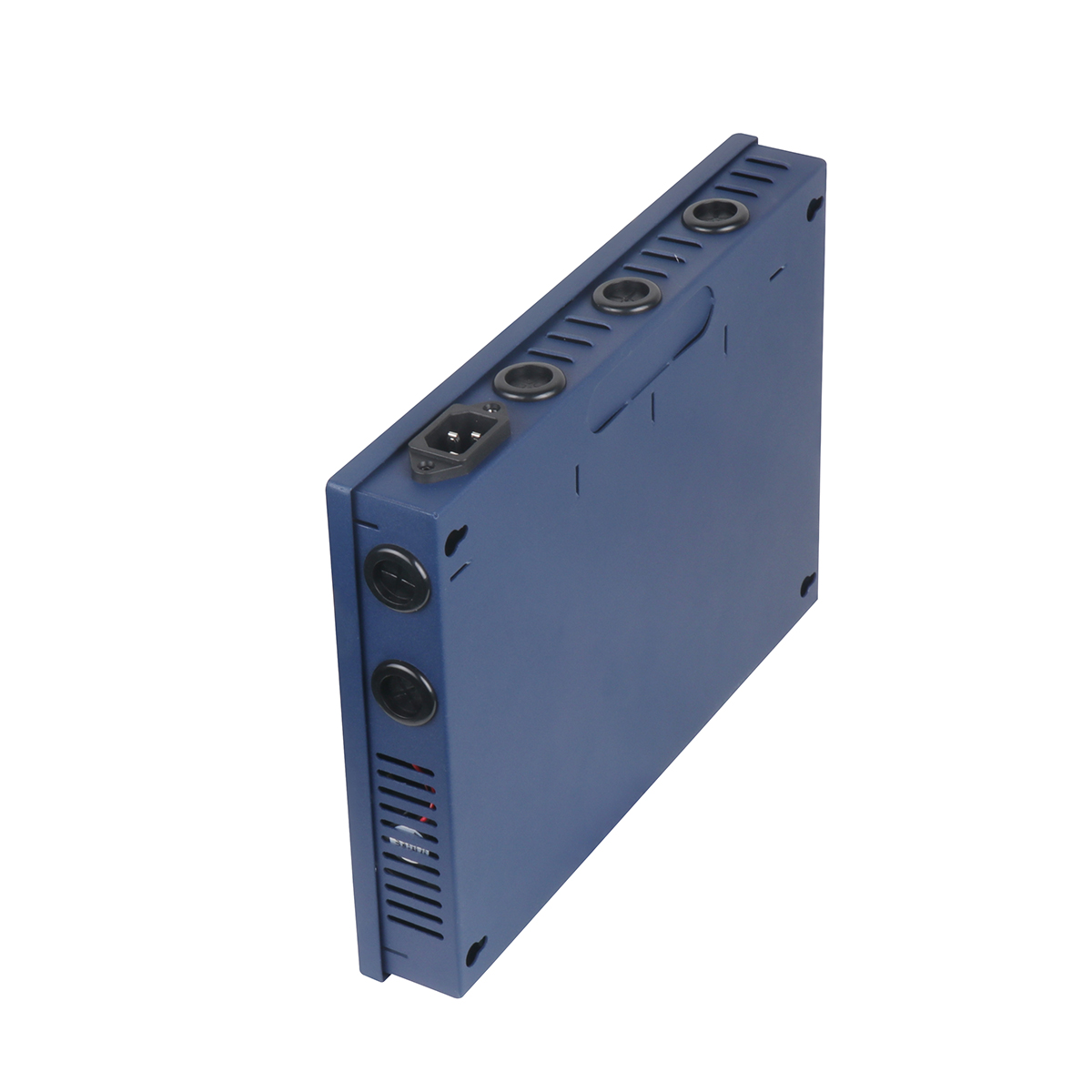

Muti-Way Boxed Power Supply CCTV (With PFC)
  • Name: 18 Channel, 250W, 12V DC 20A Output Boxed Power Supply CCTV
  • Product Code: STD-XZU250-12-18
  • Incoterm: FOB
  • Availability: In Stock
Share to:

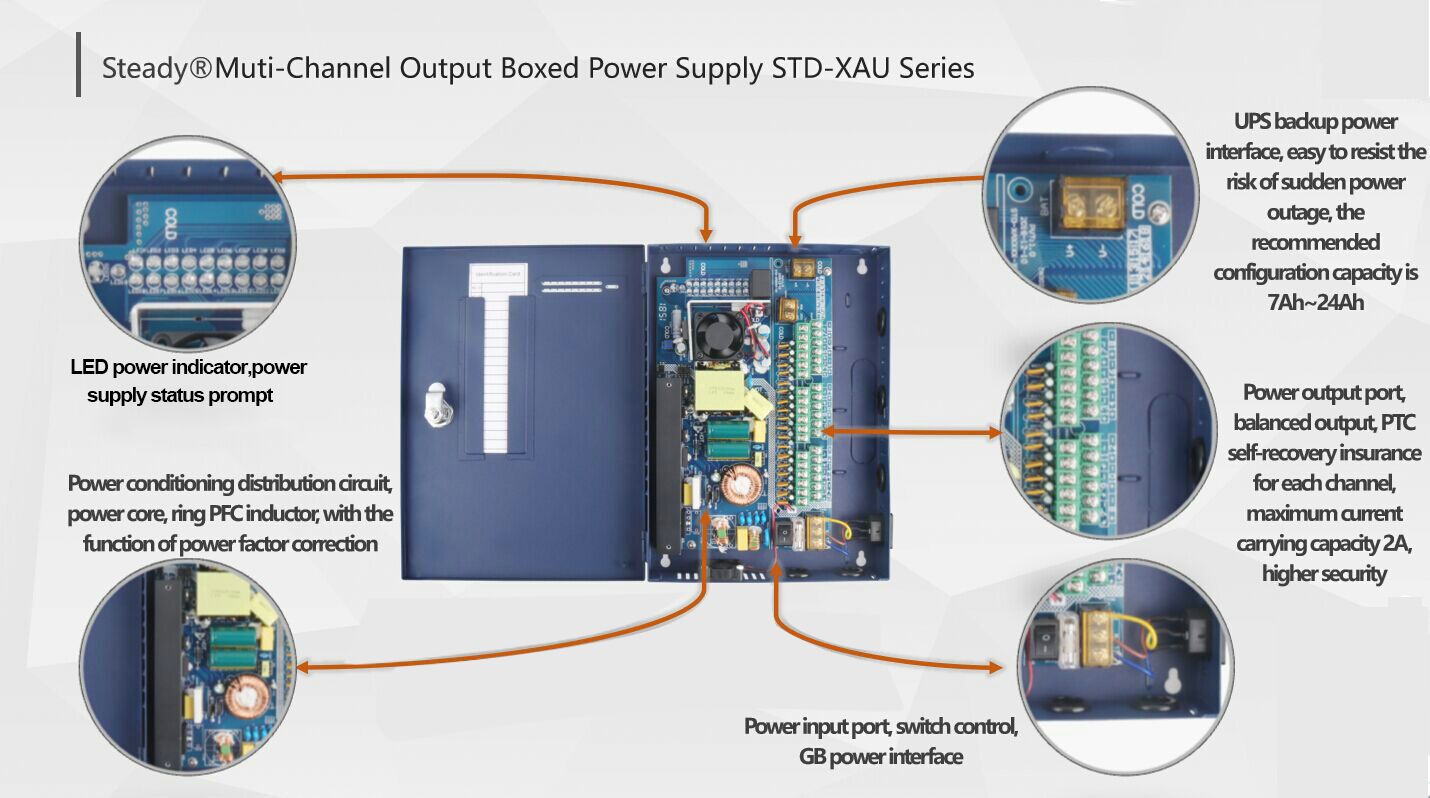

Features:

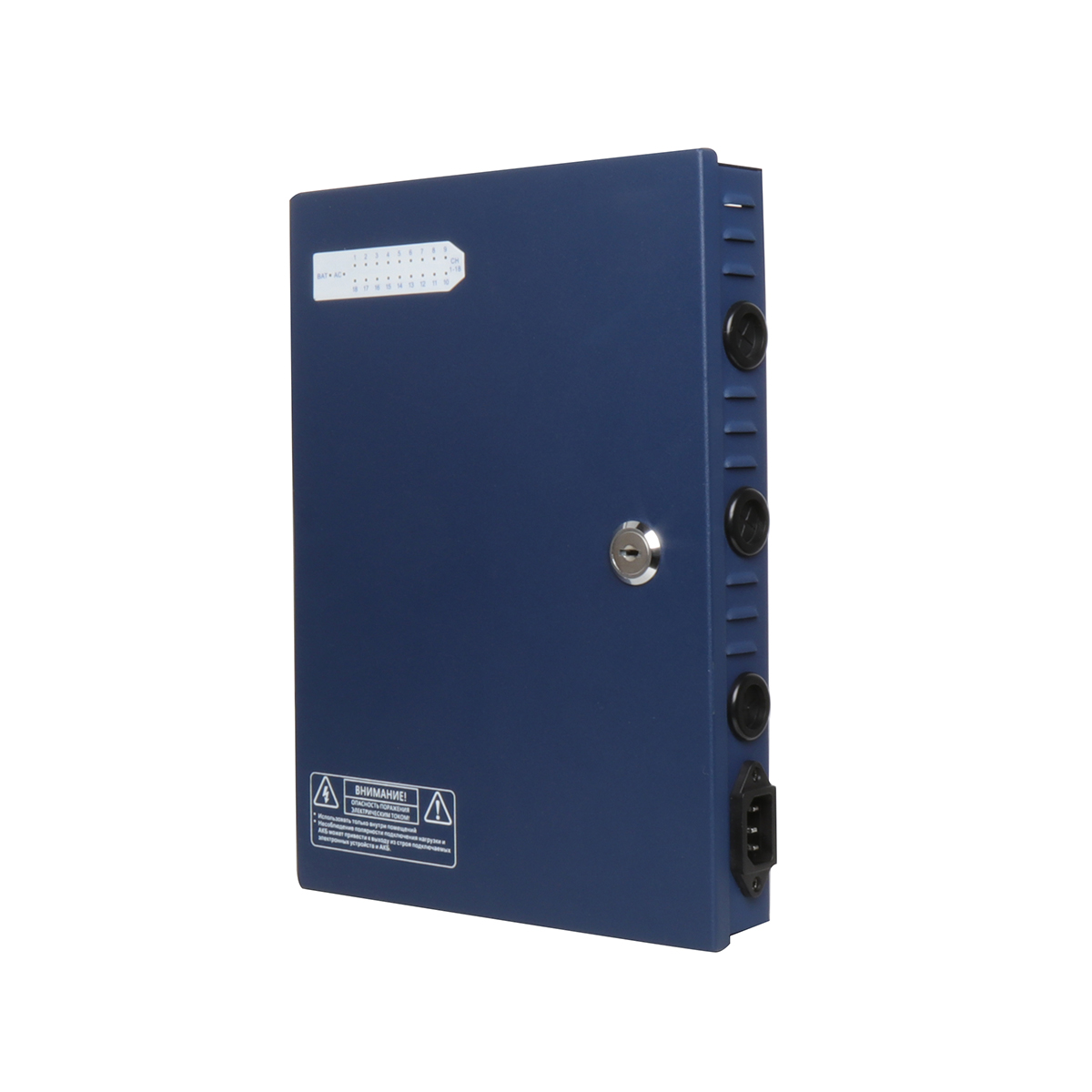

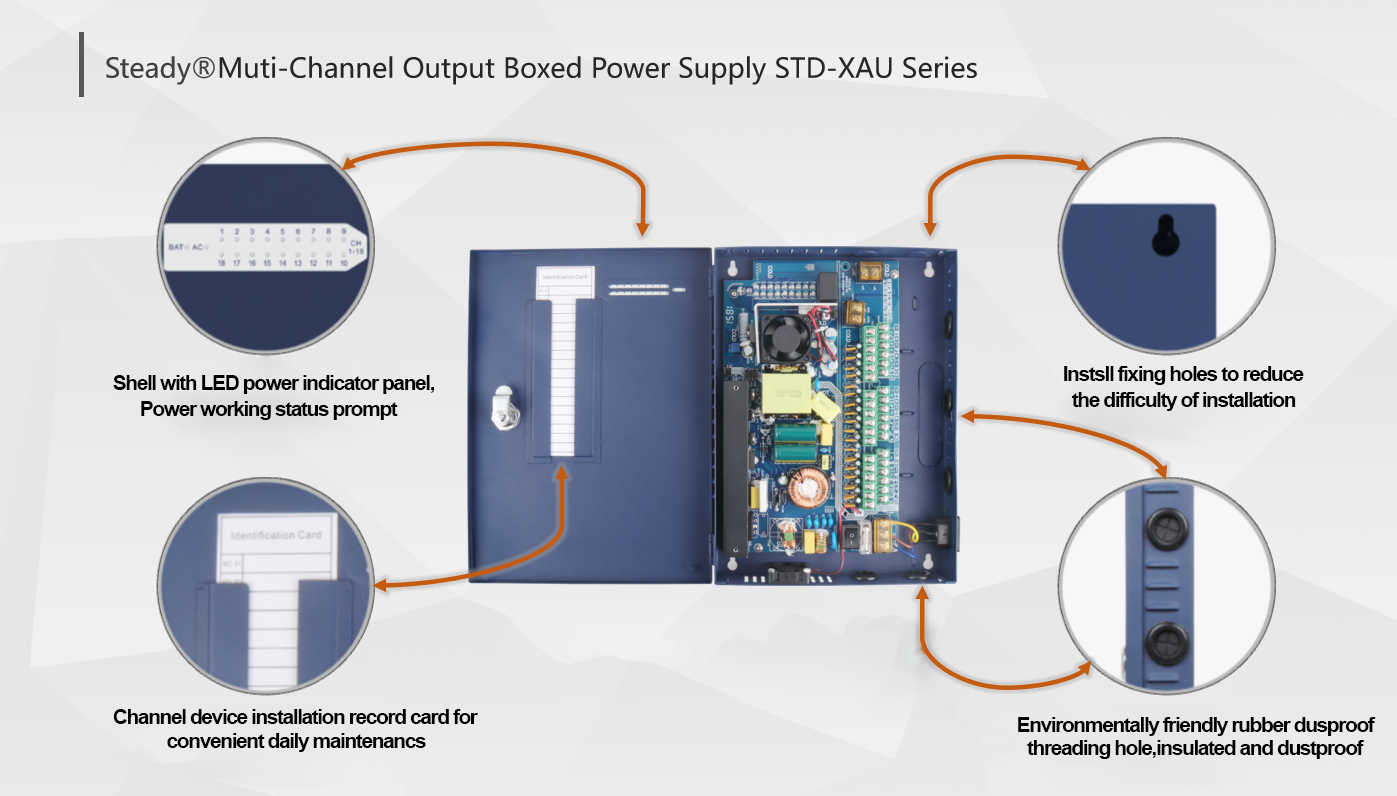

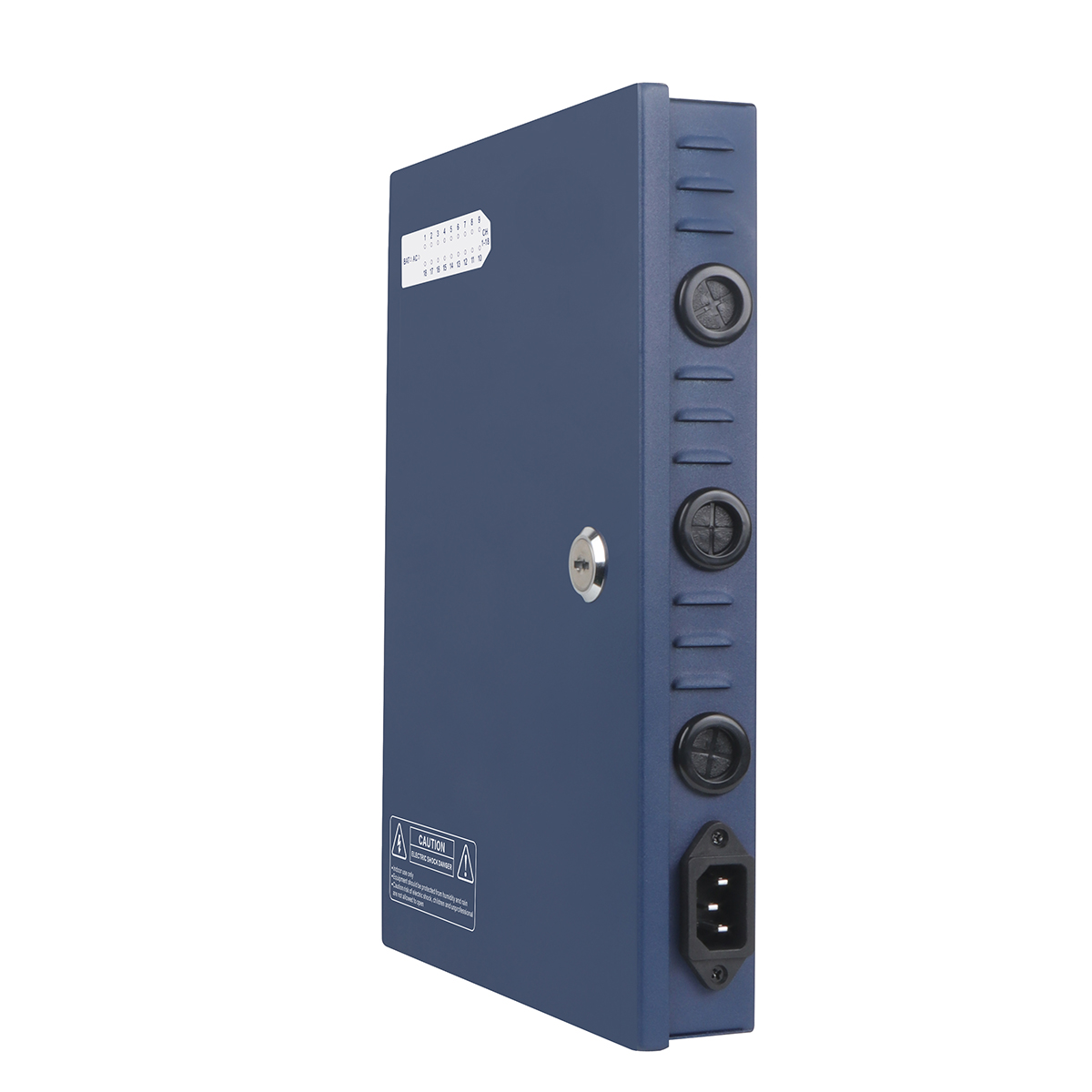

1. Metal cabinet with key lock
2. Universal AC input/Full range: 96-264V AC,47-63Hz;
3. Output voltage:DC12V;
4. Output current:20A;
5. Output Channels:18CH;
6. Voltage and current of each channel distributing evenly;
7. Output Voltage adjustable: DC 11-15V.

8. With battery backup connection;

9. External battery backup ;

10. Suitable for 7-24AH battery.


PROTECTION FUNCTIONS:

1. Built-in PFC(Power factor correction)circuits
2. Individual PTC fuse for each output channel.
3. Built-in EMI filter,100% full load burn-in test.
4. Short circuits protection
5. Over current protection
6. Over voltage protection
7. Low output ripple and noise

Applicable to all type of CCTV system
