Muti-Way Boxed Power Supply CCTV(Without PFC)
  • Name: 18 Channel, 350W, 12V DC 30A Output Boxed Power Supply CCTV
  • Product Code: STD-XJU350-12-18
  • Incoterm: FOB
  • Availability: In Stock
Share to:

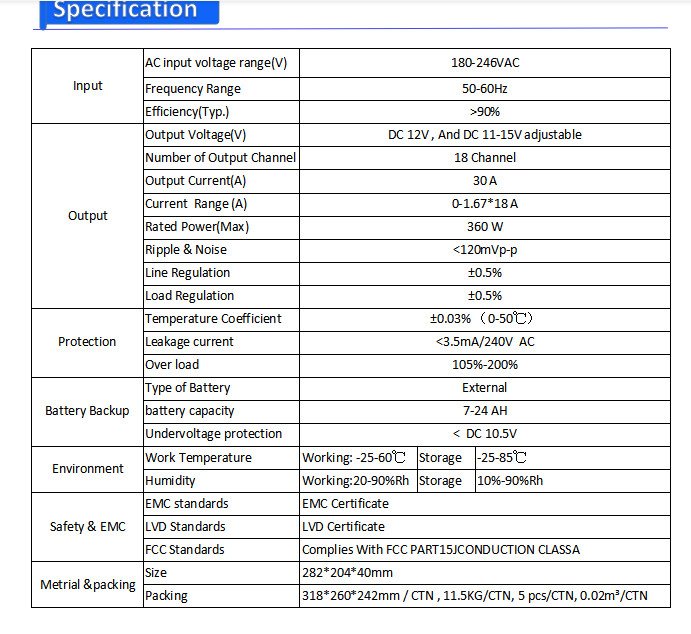

1. AC input: 180-246V AC,47-63Hz;
2. Output voltage:DC12V;
3. Output current:5A/10A/16A/20A/30A;
4. Output Channels:4CH/9CH/18CH;
5. Voltage and current of each channel distributing evenly;
6. Output Voltage adjustable: DC 11-15V.


1. Individual PTC fuse for each output channel.
2. Built-in EMI filter,100% full load burn-in test.
3. Short circuits protection
4. Over current protection
5. Over voltage protection
6. Low output ripple and noise

Certification and Warranty
1.. CE& FCC & EMC & LVD & ROHS
2. Warranty:3 years
